TSE-RF-SAT-MP-A1 (90-degree Handle, Kit Bag)
TSE-RF-SAT-MP-B1 (Straight Handle, Kit Bag)
TSE-RF-SAT-MP-A12 (90-degree Handle, Kit Bag & Holster) NSN 5985-01-619-4441
TSE-RF-SAT-MP-B12 (Straight Handle, Kit Bag & Holster)
Manpack SATCOM/LOS Antenna
Government customers can purchase online:
The Manpack Antenna Kit is a revolutionary, high-gain SATCOM and Line-Of-Site antenna designed to be used on the walk, on the halt, and on the drive.

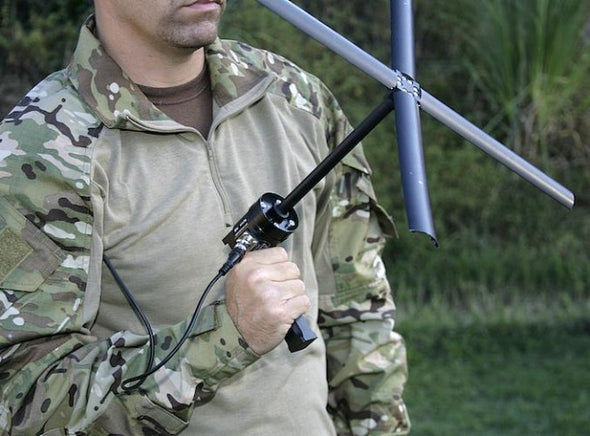

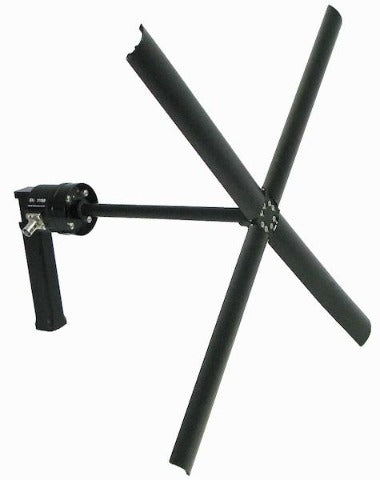

The pistol grip and holster allows the user to quickly draw and employ the antenna using a single-hand while moving on foot. Designed with a knurled ring clamp with custom springs for quick antenna employment or stowage.

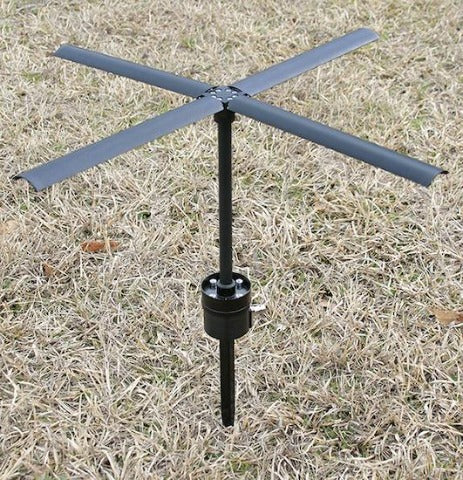

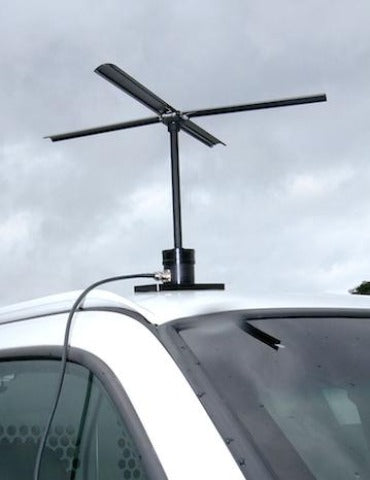

The earth spike is rugged, will not tip over and allows the antenna to be ground mounted. The magnetic base is strong and allows the antenna to be quickly mounted to vehicles.
The antenna has a frequency range of 240 to 318 MHz in SATCOM mode (8 dBic of Gain) and between 225 to 400 MHz for UHF LOS mode.
Available in two configurations; each includes a ground spike, magnetic base, coax cable, kit bag and either a pistol or straight grip. Both models are available with or without the holster.
